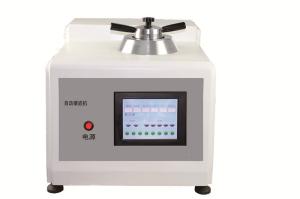

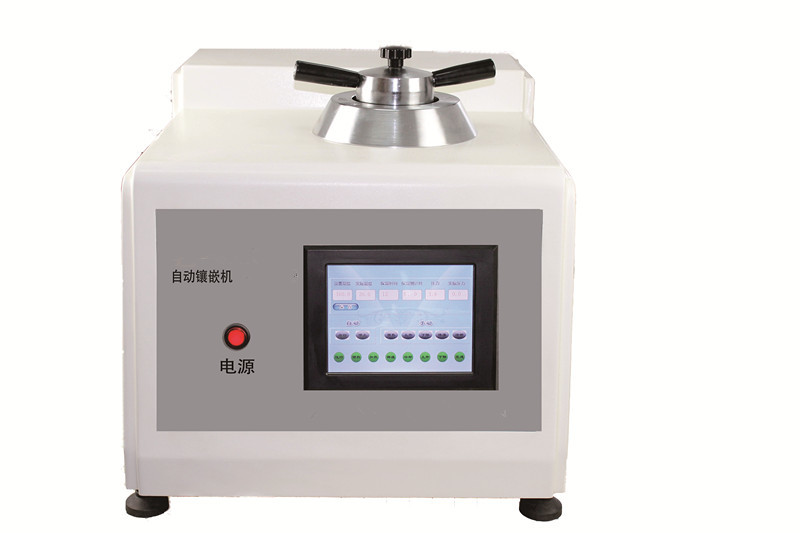

Auto Metallographic Equipment For Mounting Press / Inlaying , 220V 50HZ
HSM-3 Automatic Metallographic Inlaying Machine,all procedures are done automatically. It is used for all types material mounting press (hot mounting press and cold mounting press), and is one of the leading mounting press of the world. With Pre-heating and cooling function, can efficiently short the mounting period.
Product Features
Microcomputer control, all process automatic heating, pressure, cooling
Pre-heating function to heat the demo quickly, save process time
Water-forced cooling,quickly get the sample
Duo-cylinder inside, with the constant pressure while mounting press
Big size touch screen, graphical HMI for friendly and easy operation
Two demos can be done simultaneous, more inefficient
Four kinds diameter mold can be chose, easily change
Main Technical Specifications
Pressure, temperature, heating and cooling time can be set via touch screen
Aboard water cooling system
Aboard hydraulic system, pressure:0~2MPa(product pressure:0~72MPa)Can be done with two demos by once
| Model | HSM-3 |
| Mold diameter(can be randomly selected 2 types) | φ25mm φ30mm φ40mm φ50mm |
| Mounting temperature | 50-3000C |
| Shortest mounting time | ＜15 minutes |
| | |
| Heating power | 1000W |
| Voltage | 220V 50Hz |
| Dimensions | 630×520×520mm |
| Weight | 120Kg |
| | |
Packaging and Shipping
Packaging: Standard export package, wooden case
Delivery: 5-10 days upon receipt of payment,depending on order quantity
Shipping: Can be shipped by sea, air or other means per request.
Our Services:
Warranty: One year
After sales service and maintenance: Lifelong
